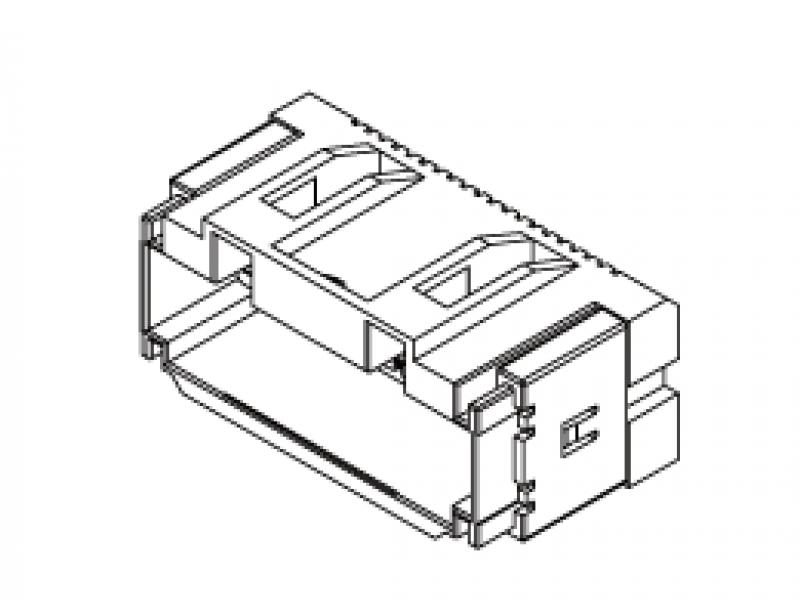

​1.25mm Pitch Duo-Clasp™ Wire-to-Board PCB Receptacle, Dual Row, Right Angle, 20 Circuits
가격0원
제조사molex
MOQ650EA
제품문의
제품 상세정보

일반적 특성

현황Active
CategoryPCB Receptacles
시리즈502046
적용제품Signal, Wire-to-Board
전체보기Duo-Clasp™ Wire-to-Board System
제품명Duo-Clasp™
UPC822350606219

물리적 특성

회로수20
최대 회로수 20
색상 - 플라스틱Natural
내구성(최대 메이팅 사이클)30
Glow-Wire 적용No
결합제품 가이드Yes
Keying to Mating Part Yes
결합제품 잠금장치Yes
Matedheight7.85mm
원재료 - 메탈Copper Alloy
원재료 - 도금부Gold
원재료 - 도금부 터미네이션Tin
Net Weight1064.040/mg
열 수2
방향성Right Angle
PCB 고정위치No
PCB 유지력Yes
포장타입Embossed Tape on Reel
피치 - 터미널 간격1.25mm
결합제품 오삽입 장치Yes
PCB 오삽입 장치No
덮개No
사용온도 범위-25°C to +85°C
터미네이션 결합방식Surface Mount

전기적 특성

(Please review the Product Specification for specific details.)
전류 - 접촉 당 최대 출력1.0A
최대전압50V AC (RMS)/DC

Agency Certification

Please find UL Certificates by searching the UL Database using the Molex Series Number. Click here to visit the UL Database

ULE29179

원재료 정보

납땜 프로세스 정보

참고 - 도면번호

Application
Specification		AS-503110-001, AS-503110-002
Packaging
Specification		SPK-502046-001
제품규격PS-501931-002, RPS-501931-002, RPS-501931-003, RPS-501931-004, RPS-501931-005, RPS-501931-007, RPS-501931-009
도면SD-502046-001, SD-502046-002
