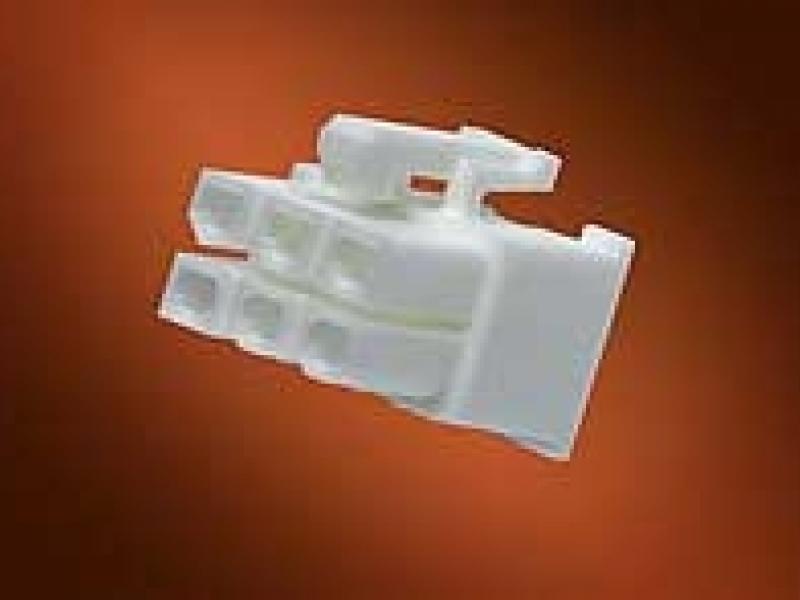

Mini-Fit Jr.™ Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural
가격0원
제조사molex
MOQ20,000EA
제품 상세정보

일반적 특성

현황Active
CategoryCrimp Housings
시리즈5557
적용제품Power, Wire-to-Board, Wire-to-Wire
설명Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750series terminal
전체보기Mini-Fit Jr.™ Power Connectors
제품명Mini-Fit Jr.™
UPC800753584259

물리적 특성

분리형No
최대 회로수2
색상 - 레진Natural
난연성94V-2
암수구분Receptacle
Glow-Wire 적용No
원재료 - 플라스틱Nylon
Net Weight0.657/g
열 수2
포장타입Bag
패널마운트No
피치 - 결합부4.20mm
피치 - 터미널 간격 4.20mm
결합제품 오삽입 장치Yes
StackableNo
사용온도 범위-40°C to +105°C

전기적 특성

(Please review the Product Specification for specific details.)
전류 - 접촉 당 최대 출력 13.0A

Agency Certification

Please find UL Certificates by searching the UL Database using the Molex Series Number. Click here to visit the UL Database

CSA LR19980
ULE29179

원재료 정보

구 제품번호 5557-02R

납땜 프로세스 정보

Lead-free
프로세스 능력
N/A

참고 - 도면번호

제품규격 PS-45750-001, PS-5556-001, RPS-5557-046
도면SD-5557-003
Test Summary TS-5556-002
